Batch Evaporator System

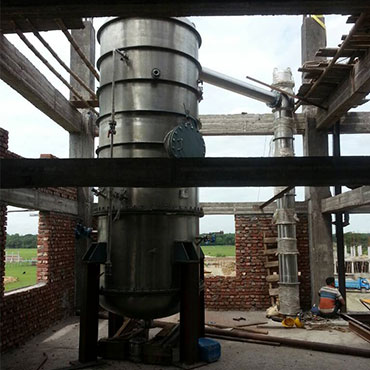

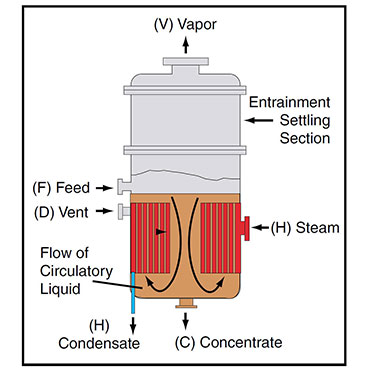

Batch pan evaporators are the oldest type of industrial evaporators. Batch pans use a Cylindrical or spherical vessel that is heated by a steam jacket or heating element. The water in the product evaporates and is collected in a separate condenser.Vaccum pan evaporator is a tank with a vacuum pump for rapid evaporation and condensation (as of sugar syrup) by boiling at a low temperature, The principal parts of vacuum pan are: i) Evaporator body, ii) Heating surface,iii) Condenser and trap and iv) Vacuum pump. The tubular calandria pans, usually made of stainless steel, are provided with either internal or external heating systems and work under reduced pressure.
